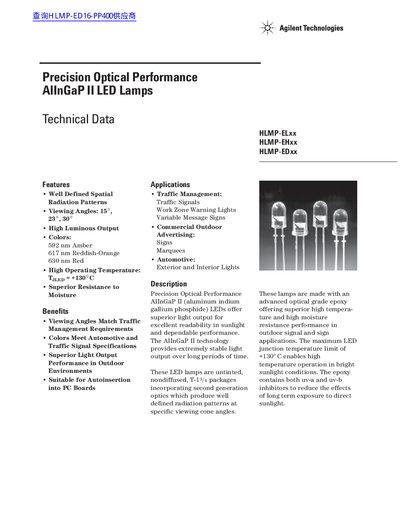

HLMP-ELxx, HLMP-EHxx, HLMP-EDxx Precision Optical Performance AlInGaP II LED Lamps feature well defined spatial radiation patterns, viewing angles of 15°, 23° and 30°, high luminous output, colors of 592 nm Amber, 617 nm reddish-orange, 630 nm Red, high operating temperature (TJLED = +130°C) and superior resistance to moisture. These lamps are suitable for autoinsertion into PC boards.
The Agilent HLMP‑ELxx, HLMP‑EHxx and HLMP‑EDxx series are precision AlInGaP II LED lamps designed for traffic‑management, outdoor advertising, and automotive lighting. They feature well‑defined spatial radiation patterns, high luminous output, and robust moisture and temperature resistance for outdoor use.
The document provides detailed selection guides, mechanical packaging options, absolute maximum ratings, and electrical/optical characteristics such as forward voltage, reverse voltage, luminous efficacy, and viewing angles for each color and bin option.
| Viewing Angles | 15°, 23°, 30° |
|---|---|
| LED Junction Temperature Limit | +130 °C |
| Luminous Efficacy (Amber) | 500 lm/W |
The maximum forward voltage for those options is 2.6 V.
Amber LEDs use color bins 2, 4, and 6, with specific part‑number suffixes indicating the bin.
