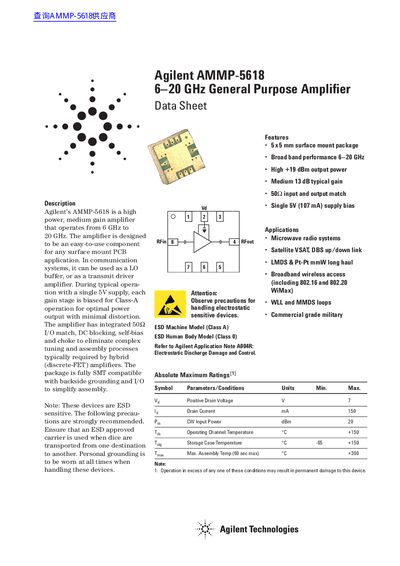

Agilent AMMP-5618 6–20 GHz General Purpose Amplifier Data Sheet, introduce the product features and characteristics, including power, gain, matching, etc.
The AMMP-5618 is a high‑power, medium‑gain MMIC amplifier covering 6 GHz to 20 GHz. It is designed for easy surface‑mount PCB integration, offering a 5 × 5 mm package, 13 dB typical gain, +19 dBm output power, and 50 Ω input/output matching.
The datasheet provides detailed DC and RF specifications, typical performance graphs, biasing guidelines, recommended solder‑reflow profile, and ordering information for various packaging options (antistatic bag, 7" reels).
| Frequency range | 6‑20 GHz |
|---|---|
| Typical gain | 13 dB |
| Output power (1 dB compression) | +19 dBm |
| Noise figure (typical) | 4.0 dB |
| Supply voltage | 5 V |
| Package size | 5 × 5 mm surface‑mount |
The recommended supply voltage is 5 V.
The amplifier can deliver up to +19 dBm output power at 1 dB gain compression.
The device is offered in a 10‑piece antistatic bag (AMMP-5618‑BLK), a 100‑piece 7" reel (AMMP-5618‑TR1), and a 500‑piece 7" reel (AMMP-5618‑TR2).
The typical small‑signal gain is 13 dB.
