This PDF file introduces the features and characteristics of the HDSP-AX11/-AX13 Series and HDSP-FX11/-FX13 Series Black Surface Seven Segment Displays, including color, size, brightness, etc.

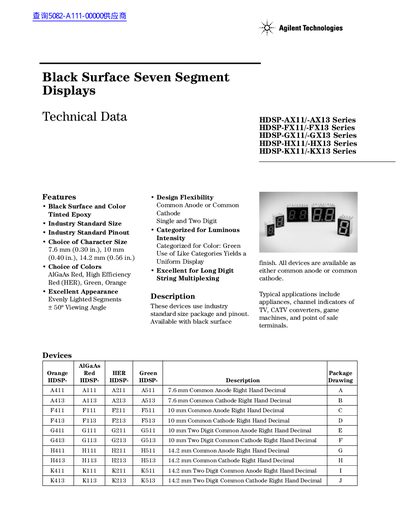

The HDSP‑AX11/AX13 series are black‑surface, seven‑segment LED displays offered by Agilent Technologies. They are available in single‑digit and two‑digit configurations, with common anode or common cathode options, and support a range of character sizes (7.6 mm, 10 mm, 14.2 mm). The displays are supplied in several color options (AlGaAs Red, High‑Efficiency Red, Green, Orange) and are designed for uniform luminous intensity across bins.
The datasheet provides detailed mechanical dimensions, absolute maximum ratings, and electrical/optical characteristics such as forward voltage, luminous intensity, peak wavelength, and temperature coefficients. It also lists intensity bin limits, packaging options, and references to related application notes for contrast enhancement, soldering, and optical performance.
| Average Power per Segment | 37 mW (7.6 mm series) |
|---|---|
| Peak Forward Current per Segment | 45 mA |
| DC Forward Current per Segment | 150 mA |
| Operating Temperature Range | -20 °C to +100 °C |
| Luminous Intensity (typical, 7.6 mm Red) | 600 cd (at 1 mA) |
| Forward Voltage per Segment | 1.6 V (typical, 1 mA) |
| Peak Wavelength (Red) | 645 nm |
| Package Options (10 mm series) | Single‑digit (F) or Dual‑digit (G) |
The displays operate from –20 °C to +100 °C.
The 10 mm series is offered as a single‑digit (F) or a dual‑digit (G) seven‑segment display.
Typical luminous intensity for red devices is about 600 cd per segment at 1 mA.
Contrast‑enhancement information is provided in Application Note 1015.
