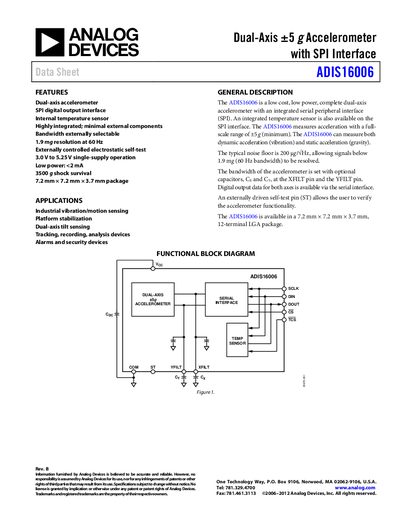

This document is the ADIS16006 datasheet, which introduces the features and characteristics of the product.
The ADIS16006 is a compact dual‑axis accelerometer featuring a SPI digital output, an internal temperature sensor, and selectable bandwidth via external capacitors. It operates from a single 3.0 V to 5.25 V supply and consumes less than 2 mA in active mode.
The device is offered in a 12‑terminal LGA package (7.2 mm × 7.2 mm × 3.7 mm) and is rated for up to 3500 g shock survival. Detailed specifications, pin functions, timing diagrams, and ordering information are provided for designers.
| Measurement Range | +5 g per axis |
|---|---|
| Sensitivity | 242‑272 LSB/g |
| Noise Density | 200 pg/√Hz (25 °C) |
| Operating Voltage | 3.0 V to 5.25 V |
| Quiescent Supply Current | 1.5 mA (typ) to 1.9 mA (max) |
| Power‑Down Current | 1.0 mA |
| Package Size | 7.2 mm × 7.2 mm × 3.7 mm (12‑terminal LGA) |
| Shock Survival | 3500 g |
| Temperature Range | -40 °C to +125 °C |
The accelerometer measures up to +5 g on each axis.
It operates from a single supply of 3.0 V to 5.25 V.
Typical quiescent supply current is 1.5 mA, with a maximum of 1.9 mA.
The noise density is 200 pg/√Hz at 25 °C.
