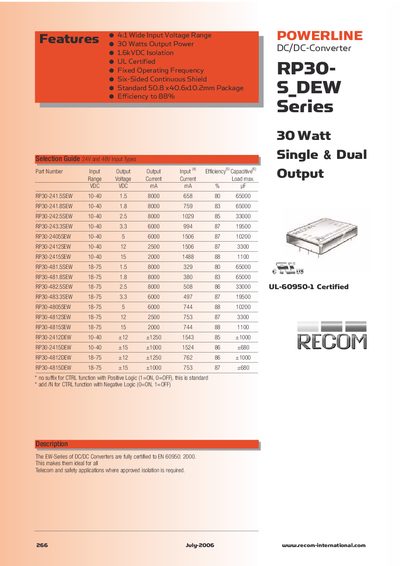

The RP30-S_DEW series of 30 Watt Single & Dual Output POWERLINE DC/DC converters have a 4:1 wide input voltage range, 30 Watts output power, 1.6kVDC isolation, UL certified, fixed operating frequency, six-sided continuous shield, standard 50.8 x 40.6x10.2mm package, and efficiency up to 88%.
The RP30‑S DEW series from RECOM offers 30 W DC‑DC converters available in single‑output and dual‑output configurations. They are fully certified to EN 60950 and are suited for telecom and safety applications requiring reliable isolation.
The datasheet includes electrical specifications such as output voltage accuracy, line and load regulation, isolation voltage, and efficiency over input voltage and load. Mechanical data, pin‑out diagrams, environmental ratings, and recommended external components are also provided.
| Output Voltage Accuracy | +1% |
|---|---|
| Line Regulation | +0.5% |
| Load Regulation (Single Output) | +0.5% |
| Isolation Voltage | 1600 VDC min |
| Operating Frequency | 300 kHz typ |
| Operating Temperature Range | -40 °C to +85 °C |
| Weight | 48 g |
| Dimensions | 50.8 × 40.6 × 10.2 mm |
The converter provides a minimum isolation voltage of 1600 VDC.
It operates from –40 °C up to +85 °C (with derating).
RECOM suggests a Nippon Chemi‑con KMF series capacitor, 220 µF/100 V, ESR 90 mΩ.
Positive‑logic ON/OFF is standard (no suffix); negative‑logic uses the “‑N” suffix on the part number.
