Start here

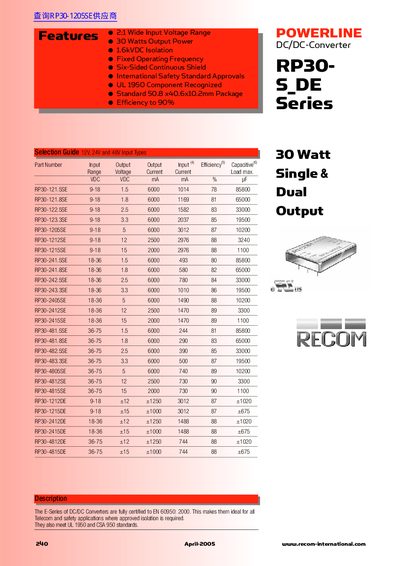

Recom RP30-S_DE Series DC/DC Converter Datasheet
This document is a technical datasheet for the Recom Powerline RP30-S_DE Series of DC/DC converters. The series offers single and dual output configurations with power ratings up to 30 Watts, designed for telecom and safety applications requiring approved isolation.
The datasheet provides detailed electrical specifications including input voltage ranges (9-18V, 18-36V, or 36-75V), efficiency data, regulation performance, and protection features such as over-voltage and short-circuit protection. It also includes mechanical dimensions, weight, thermal impedance, and environmental ratings.
Recom RP30 specifications
| Output Power | 30W max. |
|---|---|
| Operating Temperature Range | -40°C to +85°C (with derating) |
| Isolation Voltage | 1.6kVDC min. |
| Operating Frequency | 300kHz typ. |
| Weight | 48g |
| Dimensions | 50.8 x 40.6 x 10.2mm |
| MTBF | 1.535 x 10^6 Hours |
All Recom RP30 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What safety standards is the RP30-S_DE Series certified to?
The series is fully certified to EN 60950: 2000, UL 1950, and CSA 950 standards.
What is the minimum load requirement for these converters?
The minimum load is 0% for both single and dual output configurations.
What is the isolation voltage rating?
The converter provides a minimum isolation voltage of 1600 VDC.
From: RECOM RP30-S DEW Series 30W Single & Dual Output Datasheet
What temperature range can the converter operate in?
It operates from –40 °C up to +85 °C (with derating).
From: RECOM RP30-S DEW Series 30W Single & Dual Output Datasheet
