The document describes a dual-axis ministick controller with two potentiometers and an optional momentary switch. The product features a compact size, long life, and an optional momentary switch that is operational at all rotation angles.
The CTS 252 Series is a compact, metal‑cased potentiometer with a 20 × 21 × 13 mm footprint, offering up to 1 million cycles of life and optional momentary switch operation at all rotations. It complies with RoHS directives and is suitable for a range of electronic applications.

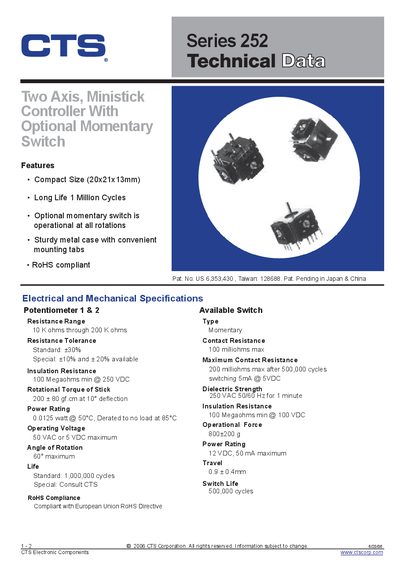

This datasheet lists the product’s electrical and mechanical specifications, including resistance range, tolerance, insulation resistance, torque, power rating, operating voltage, angle of rotation, and mounting details, as well as ordering information and optional switch configurations.
| Resistance Range | 10 kΩ through 200 kΩ |
|---|---|
| Resistance Tolerance | Standard: +30 % |
| Insulation Resistance | 100 MΩ min @ 250 VDC |
| Rotational Torque | 200 + 80 gf·cm at 10° deflection |
| Operating Voltage | 50 VAC or 5 VDC maximum |
| Angle of Rotation | 60° maximum |
| Power Rating | 12 VDC, 50 mA maximum |
| Switch Life | 500,000 cycles |
| RoHS Compliance | Compliant with EU RoHS Directive |
The resistance range is 10 kΩ through 200 kΩ.
The maximum operating voltage is 50 VAC or 5 VDC.
The standard life rating is 1 million cycles.
Yes, it complies with the European Union RoHS Directive.
