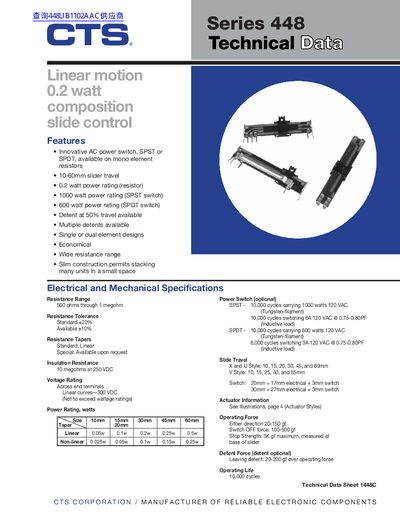

This document provides product information on the 1448C linear motion 0.2 watt composition slide control, including product features and specifications.
The CTS Series 448 family provides innovative AC power switches (SPST or SPDT) and resistors in compact, stackable designs. Features include multiple travel lengths, detent options, single or dual element constructions, and a wide resistance range.
The sheet lists electrical and mechanical specifications such as resistance range, tolerance, insulation resistance, voltage and power ratings, actuator styles, operating forces, and ordering information for the various V, U, and X style models.
| Resistance Range | 500 Ω through 1 MΩ |
|---|---|
| Resistance Tolerance | Standard +20 %, optional ±10 % |
| Insulation Resistance | 10 MΩ at 250 VDC |
| Power Rating (SPST switch) | 1000 W at 120 VAC |
| Power Rating (SPDT switch) | 600 W at 120 VAC |
| Slide Travel | 10 mm to 60 mm (various styles) |
| Operating Life | 10,000 cycles |
The resistance range is from 500 Ω up to 1 MΩ.
The SPST switch is rated for 1000 W at 120 VAC.
The switches are rated for 10,000 operating cycles.
Actuator travel lengths include 10, 15, 20, 30, 45, and 60 mm depending on the style.
