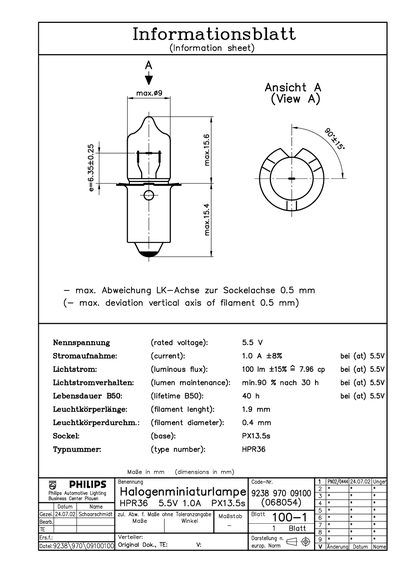

This information sheet provides the key electrical and mechanical specifications for the Philips HPR36 halogen miniature lamp. It lists the rated voltage, current consumption, luminous flux, and lumen maintenance values, as well as the lamp's lifetime rating.
Physical dimensions such as filament length, filament diameter, and base type (PX13.5s) are also included, allowing designers to verify compatibility with lighting fixtures. This manual is written in German.
| Rated voltage | 5.5 V |
|---|---|
| Rated current | 1.0 A |
| Luminous flux | 100 lm |
| Lumen maintenance | min. 90 % after 30 h |
| Lifetime B50 | 40 h |
| Filament length | 1.9 mm |
| Filament diameter | 0.4 mm |
| Base type | PX13.5s |
| Type number | HPR36 |
The lamp is rated for 5.5 V.
It draws 1.0 A at its rated voltage.
The lamp produces 100 lm of luminous flux.
It uses a PX13.5s base.
