The PZUxB series is a single zener diode in a SOT323F package with a nominal working voltage range of 2.4V to 36V. It features a total power dissipation of ≤310mW, a wide voltage range, and is suitable for surface mount design.

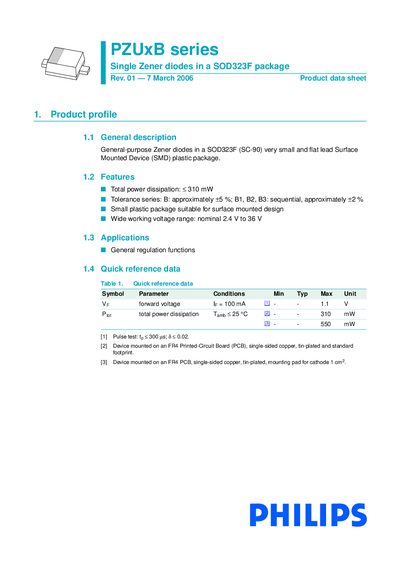

The PZUxB series consists of general‑purpose Zener diodes offered in a very small SOD323F (SC‑90) surface‑mounted plastic package. The devices provide a wide working voltage range from 2.4 V to 36 V and are intended for regulation functions in compact PCB designs.
The document includes product profile information, pin description, electrical characteristics, thermal data, package outline, packing methods, recommended reflow soldering, and legal notices. It also lists ordering information and marking codes for the 97 device types in the series.
| Total power dissipation | < 310 mW |
|---|---|
| Working voltage range | 2.4 V to 36 V (nominal) |
| Maximum junction temperature | 150 °C |
| Package type | SOD323F (SC‑90) surface‑mounted plastic package |
The maximum power dissipation is less than 310 mW.
The series covers nominal voltages from 2.4 V up to 36 V.
Reflow soldering is the only recommended soldering method.
