Philips 74ABT16952 / 74ABTH16952 Product Specification

This datasheet provides a detailed description of the features of the 74ABT16952 and 74ABTH16952 devices, including their features, functions, and performance.

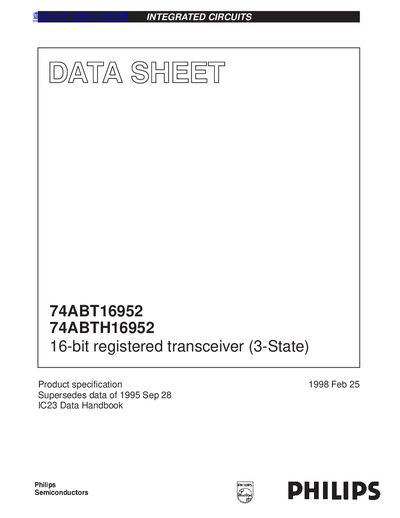

Philips 74ABT16952 / 74ABTH16952 Product Specification - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
12
File format
PDF
File size
91 KB
Published
07 May, 2012
Updated
01 October, 2023
MD5 checksum
AF941380B72BF1F64A9BC8F09254DFE5

About this manual

The 74ABT16952 and 74ABTH16952 are 16‑bit registered transceivers with dual octal registers that provide bidirectional data transfer between two buses. The devices support live insertion, power‑up 3‑State operation and optional bus‑hold inputs that eliminate external pull‑up resistors.

Key specifications include a supply voltage range of –0.5 V to +7.0 V, output drive capability of +64 mA/–32 mA, typical propagation delay of 2.3 ns, and a maximum clock frequency of 150 MHz. The parts are offered in SSOP56 and TSSOP56 packages.

What's inside

  • Features
  • Pin Description
  • Absolute Maximum Ratings
  • Recommended Operating Conditions
  • Electrical Characteristics
  • AC Characteristics
  • Setup Requirements
  • Test Circuit and Waveforms
  • Package Information
  • Disclaimers

Specifications

Output capability+64 mA / –32 mA
Supply voltage (absolute max)–0.5 V to +7.0 V
Recommended VCC4.5 V to 5.5 V
Package typesSSOP56, TSSOP56

Frequently asked questions

What is the output drive capability of the 74ABT16952/74ABTH16952?

The device can source +64 mA and sink –32 mA.

What supply voltage range is allowed for these transceivers?

The absolute maximum supply voltage is –0.5 V to +7.0 V, with a recommended range of 4.5 V to 5.5 V.

Which package options are available for the 74ABT16952 and 74ABTH16952?

They are offered in SSOP56 and TSSOP56 plastic small‑outline packages.
