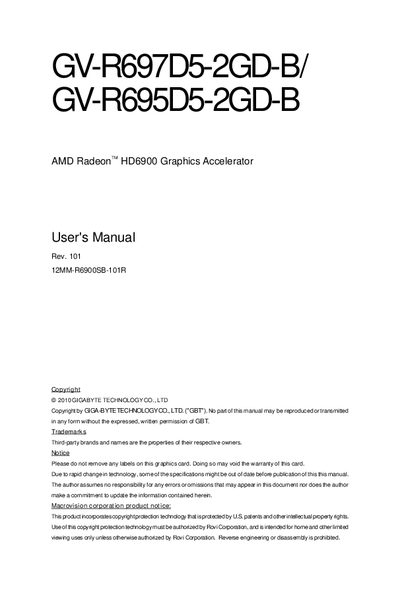

This document is the user's manual for the GV-R697D5-2GD-B/ GV-R695D5-2GD-B AMD Radeon TM HD6900 Graphics Accelerator. The manual provides information about the features and characteristics of the product.
This manual covers the Gigabyte GV-R697D5-2GD-B and GV-R695D5-2GD-B graphics accelerators based on the AMD Radeon HD6900 series GPU. It describes the card's features, supported interfaces, and required system specifications.
The document includes hardware installation instructions, board layout diagrams, power‑supply requirements, software/driver installation guidance, regulatory statements, and environmental disposal information. Safety precautions for handling the card and anti‑static measures are also provided.
| GPU | AMD Radeon HD 6970 / 6950 |
|---|---|
| PCI Express version | 2.1 |
| Memory | 2 GB GDDR5 |
| DirectX support | DirectX 11 |
| CrossFireX support | Yes |
| Display connectors | DVI‑I, DVI‑D, HDMI, mini DisplayPort ×2, Dual‑Link DVI‑I, D‑Sub (adapter) |
| Power supply (GV‑R697D5‑2GD‑B) | ≥ 550 W, 1 × 75 W 2×3‑pin PCIe, 1 × 150 W 2×4‑pin PCIe |
| Power supply (GV‑R695D5‑2GD‑B) | ≥ 500 W, 2 × 75 W 2×3‑pin PCIe |
| Power supply (CrossFire configuration) | ≥ 600 W, 2 × 2×3‑pin PCIe, 2 × 2×4‑pin PCIe |
| Supported operating systems | Windows 7, Windows Vista, Windows XP SP2, Windows XP Professional x64 |
A power supply of at least 550 W with one 75 W 2×3‑pin PCIe connector and one 150 W 2×4‑pin PCIe connector is required.
The cards support Windows 7, Windows Vista, Windows XP with Service Pack 2, and Windows XP Professional x64 Edition.
It provides DVI‑I, DVI‑D, HDMI, two mini DisplayPort connectors, a Dual‑Link DVI‑I connector, and D‑Sub output via an adapter.
Yes, the card supports CrossFireX for multi‑GPU configurations.
