The i‑RAM is a SATA‑compatible RAM‑disk solution that uses DDR memory modules to deliver fast boot‑up and data‑access speeds. It includes a built‑in 1,700 mAh lithium backup battery to protect stored data when AC power is lost, and requires no additional drivers.

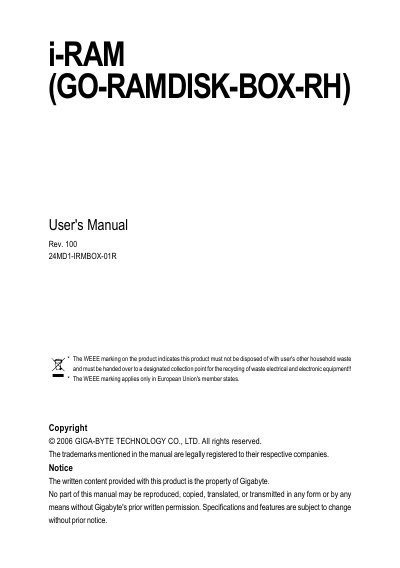

The manual guides users through product specifications, required system compatibility, hardware installation (including memory module and battery placement), software setup, formatting, and the i‑RAM EasyBackup utility. Safety precautions and battery handling instructions are also covered.
| SATA Interface Speed | Up to 150 MB/s |
|---|---|
| Maximum Memory Capacity | 4 GB |
| DIMM Sockets | Four 184‑Pin/2.5 V DDR sockets |
| Supported DDR Types | DDR 266/333/400 |
| Backup Battery | 1,700 mAh lithium |
| Driver Requirement | None |
| SATA Connector Count | One |
The i‑RAM uses a built‑in 1,700 mAh lithium backup battery that keeps the stored data alive; data is lost only when the battery is completely depleted.
No additional drivers are required; the device works as a standard SATA hard drive.
Insert each DDR DIMM into the notched socket, ensuring correct orientation, and push the retaining clips until they snap into place.
After the BIOS detects the i‑RAM as a normal hard drive, you can format it using FDISK, Windows Disk Management, or other third‑party tools.
