This article introduces the specifications and features of the Gigabyte GA-7VT600-L motherboard, which uses the VIA KT600 chipset and has integrated LAN. The article also answers questions about the performance, upgrade, and cost of the motherboard.

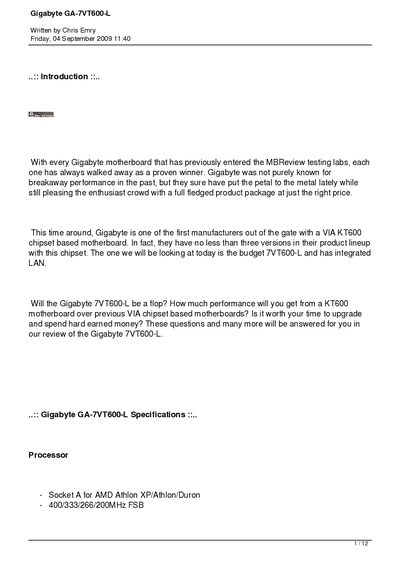

The document provides an in‑depth look at the Gigabyte GA-7VT600-L motherboard, a budget ATX board based on the VIA KT600 chipset. It outlines the hardware specifications, including CPU socket, memory capacity, expansion slots, and integrated peripherals such as LAN and audio.
The review also describes the physical layout, potential installation challenges, BIOS features, and the software suite that ships with the board, including drivers and utilities. Practical observations about heat‑sink clearance, PCI slot interference, and BIOS timeout behavior are included.
| CPU Socket | Socket A for AMD Athlon XP/Athlon/Duron |
|---|---|
| Front Side Bus | 400/333/266/200 MHz |
| Chipset | VIA KT600 Northbridge, VIA VT8237 Southbridge |
| Memory Slots | 3 × DDR DIMM sockets, max 3 GB (PC3200/PC2700/PC2100/PC1600) |
| Expansion Slots | 1 × AGP 8X, 5 × PCI |
| LAN | Realtek RTL8101L 10/100 Mbps |
| Audio Codec | Realtek ALC655 6‑channel |
| USB Ports | 6 × USB 2.0 (VT8237 built‑in) |
It uses a Socket A compatible with AMD Athlon XP, Athlon and Duron processors.
The motherboard includes six USB 2.0 ports built into the VT8237 southbridge.
Yes, it features a Realtek RTL8101L 10/100 Mbps Ethernet controller.
It supports up to 3 GB of unbuffered DDR memory (PC3200/PC2700/PC2100/PC1600).
