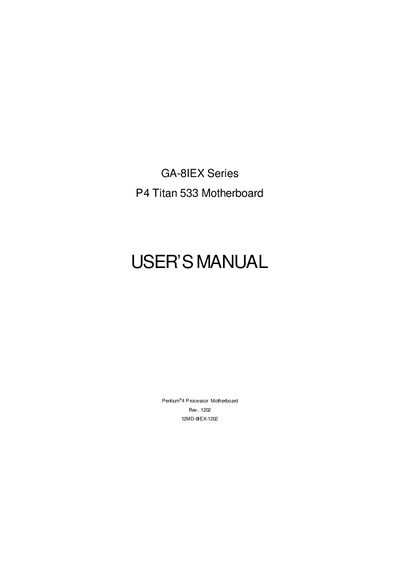

This document is the user's manual of GA-8IEX Series P4 Titan 533 motherboard, which mainly introduces the motherboard's features, hardware installation process, BIOS setting and driver installation.
This manual covers the GA-8IEX series motherboard, detailing its features, form factor, chipset, memory support, and on‑board peripherals. It includes safety precautions for handling the board and a checklist of supplied items.
The guide walks through hardware installation (CPU, memory, expansion cards, cables), BIOS configuration, driver installation, and the BIOS flash procedure. Technical specifications and troubleshooting tips are provided throughout.
| Form Factor | ATX size, 4‑layer PCB (30.6 cm × 24.4 cm) |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 processors |
| Chipset | Intel 845E HOST/AGP controller, ICH4 I/O controller hub |
| Memory Support | Up to 2 GB DDR, 184‑pin DDR DIMM sockets, 2.5 V DDR |
| Expansion Slots | 1 AGP 4X (1.5 V), 6 PCI slots, 1 CNR slot |
| USB Ports | 6 × USB 2.0/1.1 (2 rear, 4 front) |
| On‑Board LAN | Intel 82562ET LAN PHY |
It uses a Socket 478 for Intel Pentium 4 processors.
The board provides six USB 2.0/1.1 ports – two on the rear panel and four front‑panel connectors.
