This document introduces the features of GA-8IEX series motherboard, including CPU, memory, expansion card installation methods, BIOS settings and driver installation methods.

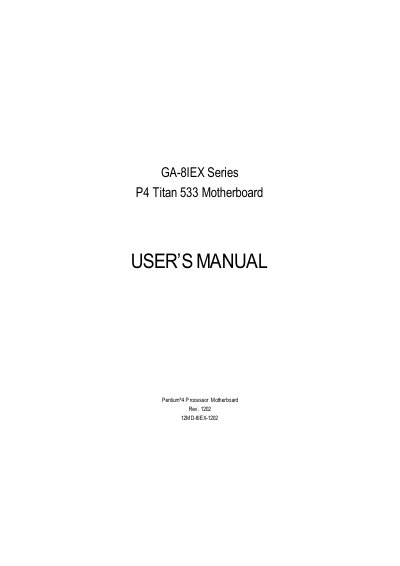

This manual covers the GA-8IEX Series motherboard, a Pentium 4‑compatible ATX board. It includes an introduction, feature summary, board layout, hardware installation procedures, BIOS configuration, driver installation, and BIOS flashing instructions.
The document also lists detailed technical specifications such as form factor, CPU socket, chipset, memory support, expansion slots, and I/O connectors, helping users assemble and configure the system safely and correctly.
| Form Factor | ATX (30.6 cm x 24.4 cm) |
|---|---|
| CPU Socket | Socket 478 for Intel® Pentium 4 |
| Chipset | Intel 845E HOST/AGP/Controller with ICH4 I/O Controller Hub |
| USB Ports | 6 USB 2.0/1.1 ports (2 rear, 4 front) |
