ASUS GigaX1024P/GigaX1024 is a 24-port 10/100Mbps+2 Gigabit Smart Switch. It provides non-blocking, wire-speed performance and easy management to meet your intensive network demands. It features auto-sensing and auto MDI/MDIX Ethernet ports for simple connectivity and enhance your network performance with flow control and QoS ability.
The GigaX1024P and GigaX1024 are 24‑port 10/100 Mbps switches, with the P version adding two 10/100/1000 Mbps ports, fan‑less design, QoS, VLAN, and other management features. They support auto‑sensing and auto‑MDI/MDIX for easy cable connections and deliver up to 8.8 Gbps switching capacity.

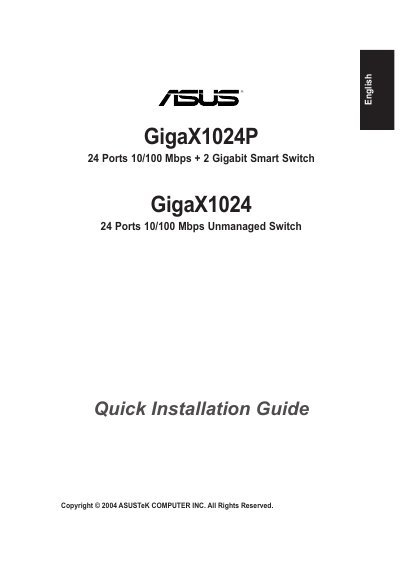

This guide walks you through unpacking, mounting the unit on a flat surface or rack, connecting power and network cables, and using the front‑panel LEDs for status monitoring. It also includes a quick reference of LED indicators, technical specifications, and a troubleshooting section for common issues such as power or link problems.
| Physical Dimensions | 43.5 mm (H) × 444 mm (W) × 200 mm (D) |
|---|---|
| Operating Temperature | -10 °C to 50 °C |
| Power Input | 100 V to 240 V AC, 50‑60 Hz |
| Power Consumption | 12 W |
| Switch Capacity | 8.8 Gbps |
| Forwarding Rate (P model) | 6.6 Mbps |
| Forwarding Rate (non‑P model) | 3.6 Mbps |
| Number of 10/100 Mbps ports | 24 |
| Number of Gigabit ports (P model) | 2 |
An OFF LED means there is a problem with the link or the port is not active.
The cable length should not exceed 100 meters (328 feet).
Verify that the power cable is properly connected to the switch and to an outlet with the correct voltage.
