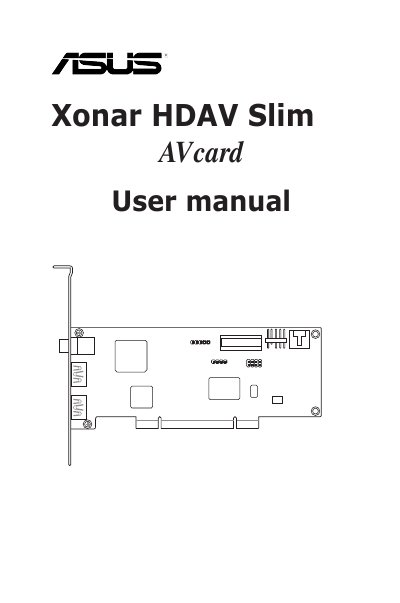

This document is the user manual for the Xonar HDAV Slim AVcard, describing the features and characteristics of the product.
This manual explains how to install the Xonar HDAV Slim AV card, configure the required drivers, and use the Xonar HDAV Center software. It includes safety notices, package contents, system requirements, and detailed hardware layout.
The guide also lists the card’s technical specifications such as the AV200 audio processor, HDMI transceiver, DAC/ADC chips, and supported audio formats, plus troubleshooting tips for common issues like missing sound or S/PDIF problems.
| Main Chipset Audio Processor | ASUS AV200 |
|---|---|
| HDMI Transceiver | CAT 6023 and 6613 |
| 24‑bit DAC of Digital Sources | Wolfson WM8776 |
| Output Signal‑to‑Noise Ratio (A‑Weighted) | Up to 109 dB |
| Total Harmonic Distortion + Noise at 1 kHz | Up to -98 dB |
Dolby and DTS are industry‑standard audio technologies, so the card includes them to provide high‑quality surround sound to a wide range of AV equipment.
