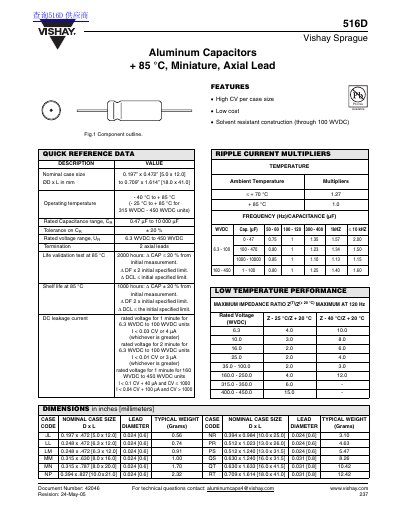

This document is about Vishay Sprague aluminum capacitors. The features are high CV/case size, low cost, solvent resistant construction.
The Vishay 516D series provides miniature axial‑lead aluminum capacitors with high capacitance per case size, low cost, and solvent‑resistant construction. The datasheet lists features, operating limits, and detailed electrical performance for a wide range of voltage and capacitance values.
The document includes quick reference tables, dimensional drawings, packaging quantities, and ordering examples, allowing designers and purchasing engineers to select the appropriate part number, case code, and tape/reel options for their applications.
| Operating temperature | -40 °C to +85 °C |
|---|---|
| Rated voltage range | 6.3 WVDC to 450 WVDC |
| Capacitance range | 0.47 µF to 10 000 µF |
| Tolerance | ±20 % |
| Termination | 2 axial leads |
The capacitors operate from –40 °C up to +85 °C.
The series is rated from 6.3 WVDC up to 450 WVDC.
The test is 2000 hours and the capacitance may change by up to ±20 % from the initial measurement.
I < 0.03 CV or 4 µA, whichever is greater, for a 1‑minute test.
