The TLH.5800 series was developed for standard applications which need a very small radiation angle or a very high luminous intensity.

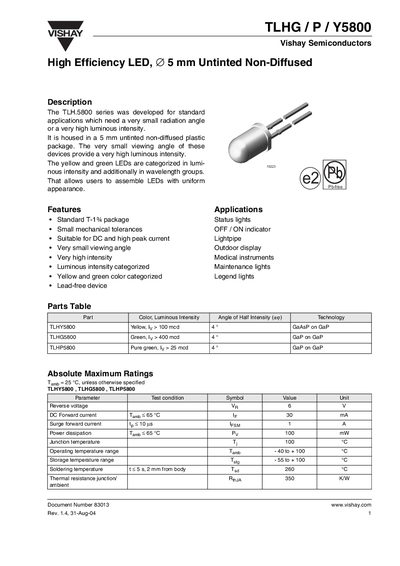

The TLHG P Y5800 series from Vishay Semiconductors provides high‑efficiency yellow, green, and pure‑green LEDs in a 5 mm untinted non‑diffused plastic package. The devices feature a very small viewing angle, high luminous intensity, and are categorized by intensity and wavelength for uniform appearance.
The document lists optical and electrical characteristics, absolute maximum ratings, package dimensions, and compliance information such as the Ozone Depleting Substances policy and legal disclaimer. It is intended for designers needing detailed specifications for integration into status lights, indicators, outdoor displays, medical instruments, and other applications.
| Package type | Standard T‑1% package |
|---|---|
| Luminous intensity (yellow) | 100–250 mcd |
| Luminous intensity (green) | 400–700 mcd |
| Dominant wavelength (yellow) | 581–594 nm |
| Dominant wavelength (green) | 562–575 nm |
| Forward voltage (typical) | 2.3–3 V |
| Reverse voltage (max) | 6–15 V |
| Power dissipation (max) | 100 mW |
| Junction temperature (max) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -55 °C to +100 °C |
| Soldering temperature (max) | 260 °C |
| Thermal resistance (junction‑to‑ambient) | 350 K/W |
It uses a standard T‑1% plastic package.
The absolute maximum DC forward current is 30 mA.
It operates from –40 °C up to +100 °C ambient temperature.
Vishay states the semiconductors are not manufactured with ozone‑depleting substances.
