The document introduces a motherboard product from ASRock brand, which features long lifespan, high-quality capacitors, support for multi-core processors, support for high-speed memory and multi-channel technology, support for multiple graphics cards and hard drive expansion, various BIOS features and functions, support for HD audio and Blu-ray audio, and comes with various software and accessories.

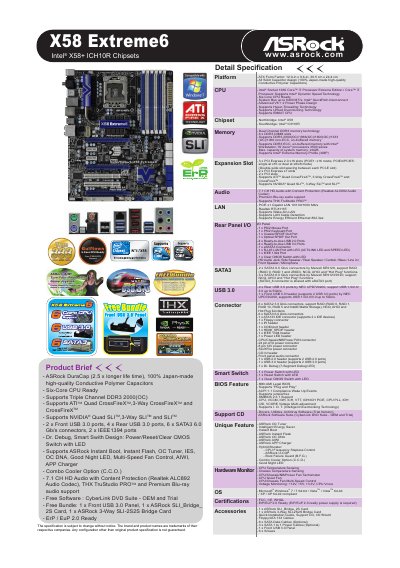

The ASRock X58 Extreme6 is an ATX‑form factor motherboard built around the Intel X58 chipset and Intel Socket 1366, supporting six‑core Core i7 and Xeon processors. It offers six DDR3 DIMM slots for up to 24 GB of memory, three PCI‑Express x16 slots for multi‑GPU configurations, and a range of high‑speed I/O including USB 3.0, SATA 3, and Gigabit LAN.
Additional features include the ASRock AIWI joystick software, Premium Blu‑ray audio with Realtek ALC892 codec, Smart Switch design for power and CMOS control, and utilities such as Instant Flash, Instant Boot, and OC DNA for BIOS management. The board complies with ErP/EuP 2.0 power‑saving standards and ships with accessories like a front USB 3.0 panel and SLI bridge cards.
| CPU Socket | LGA 1366 |
|---|---|
| Chipset | Intel X58 + ICH10R |
| Memory Slots | 6 DDR3 DIMM slots |
| Maximum Memory Capacity | 24 GB |
| SATA3 Ports | 6 x 6 Gb/s connectors |
| USB 3.0 Ports | 2 Front, 4 Rear |
| LAN Interface | Gigabit Ethernet (Realtek RTL8111E) |
| Form Factor | ATX (12.0" x 9.6") |
It uses the Intel Socket 1366 for Core i7 and Xeon processors.
The board provides six DDR3 DIMM slots.
There are two front‑panel and four rear USB 3.0 ports.
