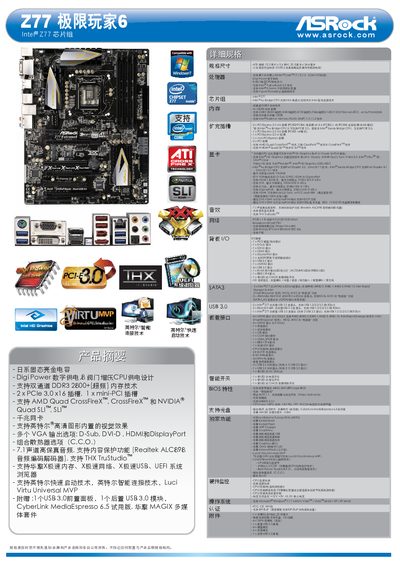

This motherboard adopts Japanese solid state bright gold capacitors and Digi Power digital power supply, supports dual channel DDR3 2800+(overclocked) memory technology, has 2 PCIe 3.0 x16 slots, 1 mini-PCI slot, supports AMD Quad CrossFireX™, CrossFireX™ and NVIDIA� Quad SLI™, SLI™, integrated Gigabit Ethernet, supports Intel� HD Graphics built-in visual effects, multiple VGA output options, supports 7.1-channel high-fidelity audio, supports ASRock X-Fast Memory, X-Fast Network, X-Fast USB, UEFI system browser, supports Intel Rapid Start Technology, Intel Smart Connect Technology, Luci Virtu Universal MVP, and comes with a USB 3.0 front panel, a rear USB 3.0 module, CyberLink MediaEspresso 6.5 trial version, and ASRock MAGIX multimedia suite
The ASRock Z77 Extreme6 motherboard features DigiPower digital power design, dual‑channel DDR3 2800+ (OC) memory support, and multiple PCI‑Express slots for high‑performance graphics. It includes a variety of video outputs (D‑Sub, DVI‑D, HDMI, DisplayPort) and a 7.1‑channel high‑fidelity audio codec (Realtek ALC898) with THX TruStudio support.
The manual details the connector layout, including 4× USB 3.0 ports, 2× USB 2.0 ports, multiple SATA3 and SATA2 interfaces, Ethernet (Gigabit), and audio jacks. BIOS features such as Intel Rapid Start, Intel Smart Connect, and overclocking options are described, along with software utilities like ASRock Extreme Tuning Utility and MAGIX multimedia suite. This manual is written in Chinese.
| CPU Support | 3rd and 1st generation Intel Core i7/i5/i3 |
|---|---|
| Audio Codec | Realtek ALC898, 7.1‑channel, THX TruStudio support |
It supports third‑generation and first‑generation Intel Core i7, i5, and i3 processors.
The board includes four USB 3.0 ports.
The motherboard can handle up to 32 GB of DDR3 memory.
It uses a Realtek ALC898 codec with 7.1‑channel high‑fidelity audio and THX TruStudio support.
