ASRock H61M-DGS motherboard features the latest Intel H61 chipset, supporting 2nd Generation Intel Core i7/i5/i3 processors in LGA1155 package. It offers a Micro ATX form factor, supports Dual Channel DDR3 1333 memory, and features Intel HD Graphics 2000/3000.

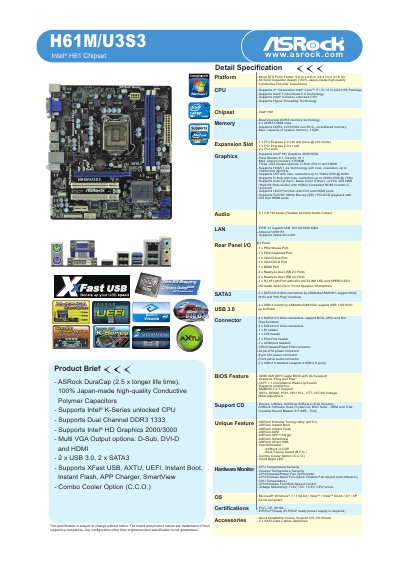

This manual provides a comprehensive overview of the ASRock H61M/U3S3 Micro‑ATX motherboard. It lists the supported Intel 2nd‑generation Core i7/i5/i3 processors (LGA1155), up to 16 GB of DDR3 memory, and the available expansion slots including one PCI‑Express x16, one PCI‑Express x1 and two PCI slots. The document also describes the integrated Intel HD Graphics 2000/3000, Realtek ALC662 5.1‑channel audio, and Atheros AR8151 Gigabit LAN.
Additional sections cover the rear I/O panel, storage options (2 × SATA3 6 Gb/s, 4 × SATA2 3 Gb/s), USB connectivity (2 × USB 3.0, 4 × USB 2.0), BIOS/UEFI features, hardware monitoring, and bundled software utilities such as ASRock Extreme Tuning Utility and SmartView. This manual is written in Chinese.
| Chipset | Intel H61 |
|---|---|
| CPU Support | 2nd‑Gen Intel Core i7/i5/i3 LGA1155, K‑Series unlocked |
| Maximum Memory | 16 GB DDR3 1333/1066 non‑ECC |
| Memory Slots | 2 × DDR3 DIMM slots |
| LAN | Atheros AR8151 Gigabit Ethernet |
| Audio Codec | Realtek ALC662 5.1‑channel |
| Form Factor | Micro ATX (9.6 in × 8.6 in) |
