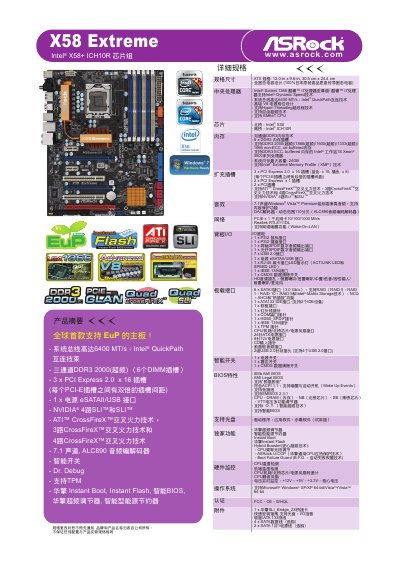

The X58 Extreme is an ASRock motherboard that uses the Intel® X58+ ICH10R chipset and supports 3-channel DDR3 2000(overclocked) memory. It also has 3 PCI Express 2.0 x 16 slots and supports NVIDIA® 4-way SLI™ and SLI™, ATI™ CrossFireX™ CrossFireX™, 3-way CrossFireX™ CrossFireX™, and 4-way CrossFireX™ CrossFireX™.
The ASRock X58 Extreme motherboard is built around the Intel X58+ ICH10R chipset and supports a high‑speed 6400 MT/s system bus with Intel QuickPath Interconnect. It offers three PCI Express 2.0 x16 slots, two PCI Express x1 slots, and two legacy PCI slots for extensive expansion.
Memory support includes six DDR3 DIMM slots for up to 24 GB of RAM, with speeds up to DDR3‑2000 (over‑clocked). The board provides seven‑channel audio via an ALC890 codec, a Realtek RTL8111DL gigabit Ethernet controller, six SATA II ports with RAID 0/1/5/10 support, and a variety of USB 2.0, HDMI, SPDIF, and IEEE 1394 interfaces. Advanced BIOS features such as Instant Boot, Instant Flash, and TPM support are also highlighted. This manual is written in Chinese.
| Maximum System Bus Speed | 6400 MT/s |
|---|---|
| Audio Codec | ALC890 7.1‑channel codec |
| Network Controller | Realtek RTL8111DL gigabit Ethernet |
The motherboard supports a system bus speed of up to 6400 MT/s.
The board uses an ALC890 codec to provide 7.1‑channel audio.
