This document provides detailed specifications of a central processor chip, including memory, expansion slots, audio, LAN, back panel I/O interfaces, onboard interfaces, BIOS features, and support for optical discs. The product supports multiple technologies and features, and offers high-speed transmission and high-quality audio.

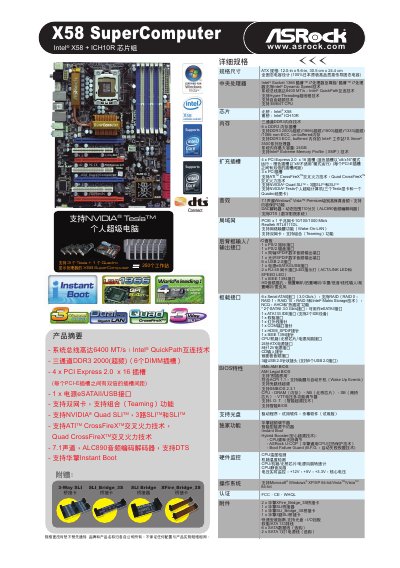

The ASRock X58 SuperComputer motherboard is built on the Intel® X58 + ICH10R chipset and supports Intel® Socket 1366 processors, including Xeon and Core i7 series. It offers triple‑channel DDR3 memory with up to 24 GB capacity and supports both ECC and non‑ECC modules.
Key features include four PCI Express 2.0 x16 slots with double‑spacing for multi‑GPU configurations, six SATA II ports with RAID support, a 7.1‑channel audio solution using the ALC890 codec, and dual Realtek network controllers with teaming capability. The board follows the ATX form factor and incorporates a full solid‑state capacitor design for enhanced reliability. This manual is written in Chinese.
| CPU socket | Intel® Socket 1366 |
|---|---|
| Memory slots | 6 DDR3 DIMM slots (triple‑channel) |
| Maximum memory | 24 GB |
| PCI Express x16 slots | 4 × PCI Express 2.0 x16 |
| SATA ports | 6 × Serial ATAII (3 Gb/s) with RAID |
| Audio codec | ALC890 7.1‑channel |
It uses the Intel® Socket 1366 for Xeon and Core i7 processors.
The board provides four PCI Express 2.0 x16 slots with double‑spacing for multi‑GPU setups.
Yes, it supports dual NICs and includes teaming functionality.
It supports triple‑channel DDR3 memory up to 2000 MHz, with a maximum capacity of 24 GB, and can handle both ECC and non‑ECC modules.
