This document introduces the features and characteristics of the products, such as Intel® Smart Connect Technology, Intel® Fast Boot Technology, and detailed specifications. The product features Japanese solid-state bright gold capacitors, digital power supply, dual-channel DDR3 memory technology, supports AMD 4-way CrossFireX and CrossFireXTM, provides multiple VGA output options, supports 7.1 channel high-fidelity audio and content protection.

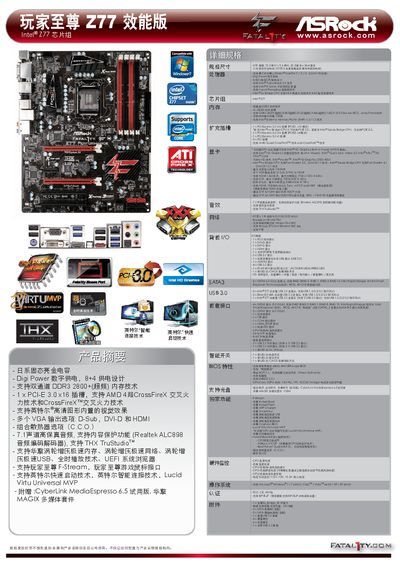

This manual provides an overview of the ASRock Fatal1ty Z77 Performance motherboard, covering its ATX form factor, supported Intel Core processors (LGA1155), and DigiPower digital power design. It details memory support, including dual‑channel DDR3 up to 32 GB and overclocking capabilities.
The document also describes the motherboard's expansion slots (PCI‑Express x16, x4, x1), storage interfaces (SATA2/3, RAID), audio (Realtek ALC892, THX TruStudio), networking (Realtek BCM57781), and USB ports (USB 2.0, USB 3.0). Additional sections cover BIOS features, power management, and troubleshooting. This manual is written in Chinese.
| Chipset | Intel Z77 |
|---|---|
| Maximum Memory Capacity | 32 GB |
| Network Controller | Realtek BCM57781 Gigabit Ethernet |
Up to 32 GB of DDR3 memory can be installed.
