This document provides detailed specifications of a motherboard, including features and support for CPU, memory, expansion slots, audio, graphics, LAN, BIOS, etc.

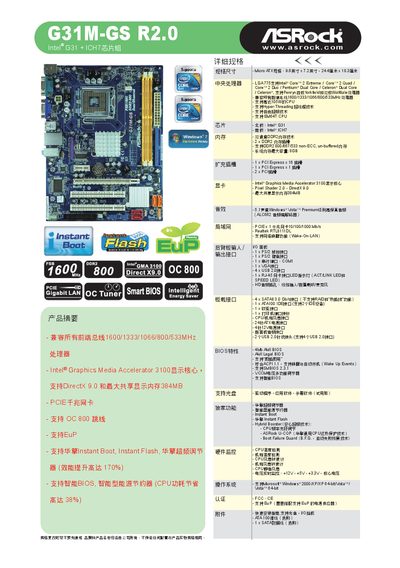

The G31M-GS R2.0 is an LGA775 micro‑ATX motherboard built around the Intel G31 northbridge and ICH7 southbridge. It supports a range of Intel Core2 and Pentium Dual‑Core CPUs, DDR2 memory up to 8 GB, and offers integrated graphics via Intel GMA 3100 with up to 384 MB shared video memory. The board includes four SATA 3.0 Gb/s ports, a Gigabit LAN controller, and a Realtek ALC662 5.1‑channel audio codec.
The manual covers hardware installation, BIOS utilities such as Instant Boot and Instant Flash, power‑saving features like EuP compliance, and detailed hardware monitoring. It also explains how to use the Hybrid Booster overclocking technology and provides troubleshooting guidance. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Chipset | Intel G31 |
| Southbridge | Intel ICH7 |
| Memory Type | DDR2 |
| Memory Slots | 2 x DDR2 |
| Maximum Memory | 8 GB |
| PCI Express Slots | 1 x PCIe x16, 1 x PCIe x1, 2 x PCI |
| Integrated Graphics | Intel GMA 3100, 384 MB shared memory |
| Audio Codec | Realtek ALC662, 5.1‑channel |
| LAN Controller | Realtek RTL8111DL Gigabit Ethernet |
Up to 384 MB of system memory can be allocated as shared video memory.
The motherboard supports up to 8 GB of DDR2 memory.
Yes, the board is designed to support EuP and requires a compatible EuP‑rated power supply.
