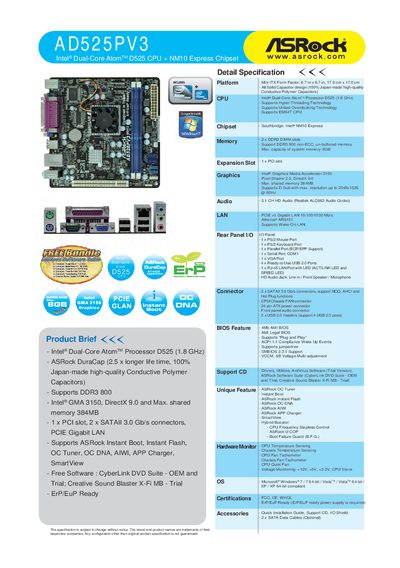

AD525PV3 is a mini-ITX motherboard that uses Intel® Dual-Core AtomTM Processor D525 (1.8 GHz) and Intel® NM10 Express Chipset. It supports DDR3 800 non-ECC, un-buffered memory, and has a maximum memory capacity of 8GB.
The ASRock AD525PV3 is a Mini‑ITX motherboard built around an Intel Dual‑Core Atom D525 processor and the Intel NM10 Express chipset. It offers a compact layout with 2 DDR3 memory slots, a PCI slot, dual SATAII connectors, and integrated Gigabit LAN.
The manual details the board's hardware features such as the Realtek ALC662 5.1‑channel audio codec, Intel GMA 3150 graphics, and the SmartView utility that integrates web browsing and social media. It also covers the ErP/EuP compliance for low power consumption and lists the bundled software trials.
| CPU | Intel Dual‑Core Atom D525 (1.8 GHz) |
|---|---|
| Chipset | Intel NM10 Express (Southbridge) |
| Expansion Slot | 1 × PCI slot |
| SATA | 2 × SATAII 3.0 Gb/s connectors |
| LAN | PCIe × 1 Gigabit LAN (Atheros AR8151) |
| Audio | Realtek ALC662 5.1‑channel HD Audio |
| Form Factor | Mini‑ITX 6.7 in × 6.7 in (17 cm × 17 cm) |
It uses an Intel Dual‑Core Atom D525 processor running at 1.8 GHz.
The motherboard provides two SATAII 3.0 Gb/s connectors.
SmartView is a browser start page that shows frequently visited sites, Facebook friends, and a real‑time news feed.
