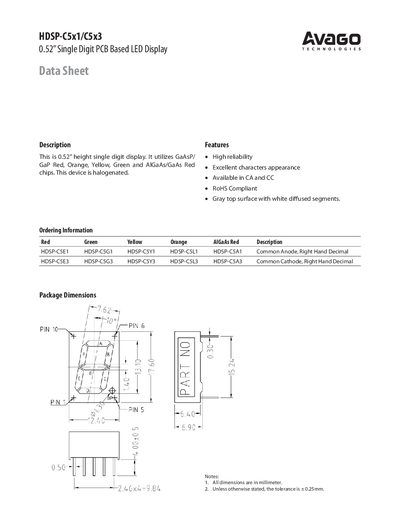

HDSP-C5x1/C5x3 0.52” Single Digit PCB Based LED Display Data Sheet, this display is 0.52 inches high, uses GaAsP/GaP red, orange, yellow, green and AlGaAs/GaAs red chips, has high reliability, excellent appearance, can be used in CA and CC, meets RoHS standards, gray top surface with white diffused segments
The HDSP-C5x1/C5x3 is a 0.52" height single‑digit LED display that uses GaAsP/GaP red, orange, yellow, green and AlGaAs/GaAs red chips. It is available in common‑anode and common‑cathode configurations and is RoHS compliant.
The datasheet provides package dimensions, absolute maximum ratings, and optical characteristics such as luminous intensity, forward voltage, and wavelength for each color. Operating temperature ranges from –40 °C to 85 °C, and each segment can handle up to 25 mA continuous forward current.
| Display height | 0.52 in |
|---|---|
| Power dissipation per segment (Red) | 57.5 mW |
| Continuous forward current per segment | 25 mA |
| Reverse voltage per segment | 5 V |
| Operating temperature range | -40 °C to 85 °C |
| Average luminous intensity (Red, typical) | 4.0 cd |
| Peak wavelength (Red) | 640 nm |
| Forward voltage per segment (Red, typical) | 2.0 V |
| RoHS compliance | Yes |
The display is 0.52 inches tall as a single‑digit PCB‑based LED module.
It operates from –40 °C to 85 °C.
Each segment can handle a continuous forward current of 25 mA.
Yes, the device is RoHS compliant.
