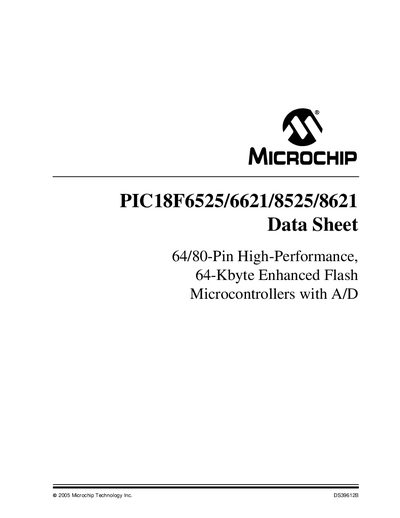

This document introduces Microchip Technology Inc.'s PIC18F6525/6621/8525/8621 data sheet, which provides detailed information about the product, including product features, characteristics, and application scenarios
The PIC18F6525/6621/8525/8621 family are 64‑ or 80‑pin high‑performance 8‑bit microcontrollers featuring up to 64 KB of enhanced flash, 1 KB of data EEPROM and up to 10 MIPS of processing speed. They include a rich set of peripherals such as multiple timers, capture/compare/PWM modules, MSSP, EUSART, analog‑to‑digital converters and high‑current I/O pins.
The data sheet provides detailed information on device architecture, oscillator options, memory interfaces, electrical characteristics, packaging, and ordering information, along with contact details for worldwide sales and support.
| Package Pin Count | 64/80 pins |
|---|---|
| Flash Memory | 64 KB |
| Performance | Up to 10 MIPS |
| Maximum Oscillator Frequency | 40 MHz |
| I/O Pin Current | 25 mA sink/source |
| ADC Resolution | 10‑bit, up to 16 channels |
| Supply Voltage | 2.0 V to 5.5 V |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
It contains 64 KB of enhanced flash memory.
The ADC provides 10‑bit resolution with up to 16 selectable channels.
The device operates with a VDD range of 2.0 V to 5.5 V.
