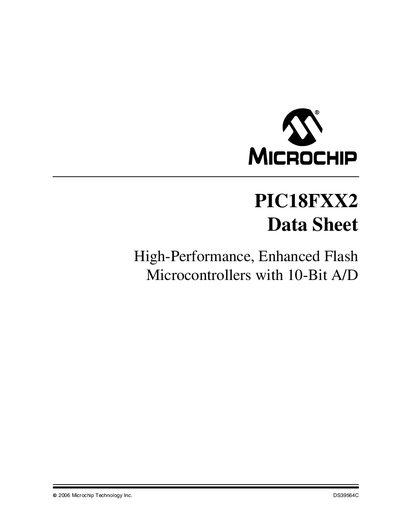

This document describes the PIC18FXX2 high-performance, enhanced flash microcontrollers with 10-bit A/D conversion developed by Microchip Technology Inc.
The PIC18FXX2 family offers a high‑performance 8‑bit RISC core with up to 10 MIPS operation, 10‑bit ADC, multiple timer modules, and a range of communication peripherals such as USART, SPI, and I²C. It supports a wide voltage range (2.5 V–5.5 V for low‑power parts, 4.2 V–5.5 V for standard parts) and operates from -40 °C to +125 °C depending on the temperature grade.
Key features include a 8 × 8 hardware multiplier, up to 32 KB of linear program memory, 1.5 KB of data memory, programmable brown‑out reset, watchdog timer, and various low‑power modes. The device is supplied in multiple packages (PDIP, SOIC, TQFP, PLCC) and includes extensive development support through Microchip's MPLAB tools.
| Maximum MIPS | Up to 10 MIPS |
|---|---|
| Oscillator Input Frequency | DC – 40 MHz, 4 MHz–10 MHz with PLL |
| ADC Resolution | 10‑bit |
| Current Sink/Source per I/O | 25 mA |
| Program Memory Size | Linear addressing up to 32 KB |
| Data Memory Size | Linear addressing up to 1.5 KB |
| VDD Range (standard) | 4.2 V to 5.5 V |
| VDD Range (low‑power) | 2.5 V to 5.5 V |
| Industrial Temperature Range | -40 °C to +85 °C |
| Extended Temperature Range | -40 °C to +125 °C |
The core can achieve up to 10 MIPS, with a 40 MHz external oscillator or 4 MHz–10 MHz when using the PLL.
Yes, it includes an 8 × 8 single‑cycle hardware multiplier.
