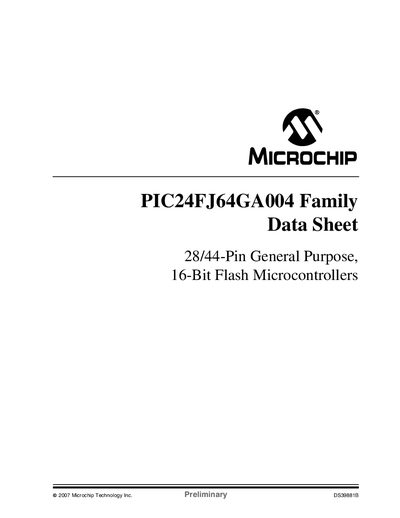

Provides the datasheet for the PIC24FJ64GA004 family, which is a 28/44-pin general purpose, 16-bit Flash microcontroller.
The PIC24FJ64GA004 family comprises 28‑ and 44‑pin general‑purpose 16‑bit Flash microcontrollers built on a modified Harvard architecture. They deliver up to 16 MIPS at 32 MHz, feature an 8 MHz internal oscillator with a 4× PLL, and support a wide range of peripherals including multiple UARTs, SPI, I²C, PWM, and a 10‑bit, up to 13‑channel ADC.
Key functional blocks include flexible peripheral pin select, multiple power‑saving modes (Sleep, Idle, Doze, Alternate Clock), on‑chip voltage regulation, and robust code‑protection features. The data sheet also lists detailed electrical characteristics, packaging options, and ordering information for both industrial‑temperature and standard devices.
