VLMRGB343.. is a tricolor LED produced by Vishay Semiconductors. It features high brightness, a small package, a black surface, complies with JEDEC moisture sensitivity level 2 standard, can withstand ESD-1kV voltage, is suitable for IR reflow soldering, automotive electronics and meets RoHS and WEEE standards.
The VLMRGB343 is a high‑brightness tricolor surface‑mount LED designed for accent lighting, displays, and backlighting in consumer appliances and industrial equipment. It offers individual RGB control, a compact PLCC‑4 package, and compliance with JEDEC moisture‑sensitivity level 2, AEC‑Q101 automotive qualification, and RoHS/WEEE directives.

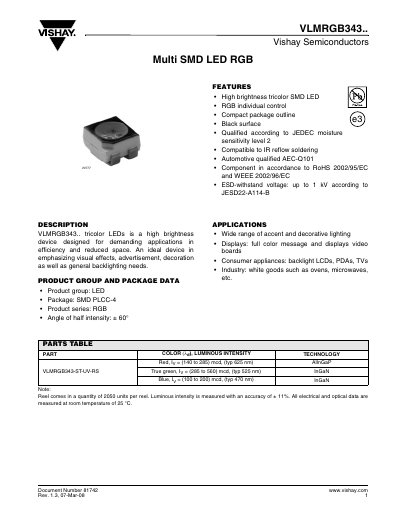

The datasheet lists electrical ratings such as forward voltage ranges (1.8‑2.45 V for red, 3.7‑4.25 V for green, 3.6‑4.25 V for blue) and forward current limits (30 mA red, 20 mA green/blue). Optical data include luminous intensity values per color group. Packaging details, recommended soldering profiles, storage conditions (10 °C‑30 °C, ≤ 60 % RH), and environmental compliance statements are also provided.
| Forward voltage (red) | 1.8 to 2.45 V |
|---|---|
| Forward voltage (green) | 3.7 to 4.25 V |
| Forward current (red) | 30 mA |
| Forward current (green/blue) | 20 mA |
| Luminous intensity (red) | 140‑285 mcd |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
The recommended storage temperature is 10 °C to 30 °C.
The maximum reverse voltage for the red version is 12 V.
Yes, it complies with RoHS 2002/95/EC and WEEE 2002/96/EC directives.
