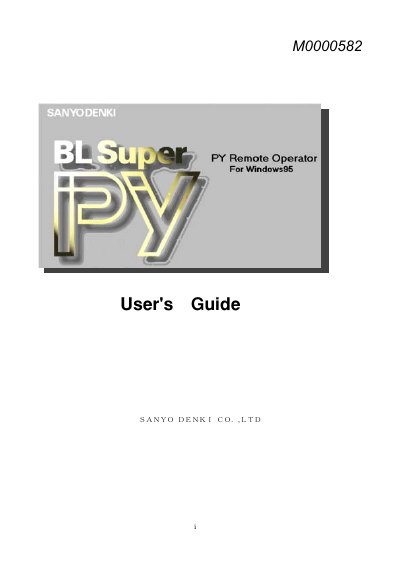

This document is a user guide for the PY Remote Operator for Windows, a tool designed to assist users of the PY series servo systems in safely conducting operational checks and easily adjusting and setting up their servo drivers. It provides instructions on setup, connection, and usage of the PY Remote Operator for Windows, along with the accompanying instruction manual of the PY servo driver.
The PY Remote Operator for Windows is a software tool that lets users of Sanyo’s PY series servo systems adjust parameters, perform batch saves and loads, monitor conditions, display waveforms, and run test modes via a serial connection. The manual explains how to install the program, connect the servo driver, and use the various functions.
The guide includes hardware requirements, step‑by‑step installation instructions, detailed descriptions of the user interface, parameter editing procedures, troubleshooting tips, and a cable connection diagram to help users set up and operate the software safely and efficiently.
| Operating System | Windows 95 |
|---|---|
| Minimum Free Hard‑Disk Space | 4 MB |
| Floppy Disk Drive | 3.5" floppy disk drive |
| Serial Port | At least one free serial port |
| Display Requirements | 800 × 600 pixels, 256 colors |
Insert the installation floppy disk, double‑click setup.exe (or run it from the Start menu), and follow the on‑screen instructions.
Use the provided cable to connect the OP connector on the PY servo driver to the computer’s COM (serial) port.
Verify that the folder and file names are correct and that the color specification is less than 256 colors.
