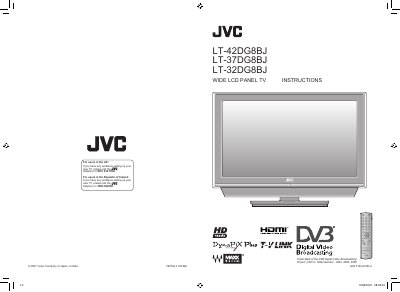

This document is the instruction manual for setting up VCTron LT-42DG8BJ, LT-37DG8BJ, LT-32DG8BJ etc. LCD TVs
This manual provides safety instructions, installation guidelines, and basic operation steps for JVC LCD televisions (LT‑32DG8BJ, LT‑37DG8BJ, LT‑42DG8BJ). It explains how to connect power, aerials, and external devices, and includes troubleshooting tips.
The document also lists technical specifications such as power requirements, audio output, dimensions, and supported broadcasting standards, as well as detailed information on channel scanning, digital audio settings, and service‑scan procedures.
| Model | LT-32DG8BJ / LT-37DG8BJ / LT-42DG8BJ |
|---|---|
| Power requirements | AC 220‑240 V, 50 Hz |
| Power consumption (typical) | 125 W (32"), 170 W (37"), 214 W (42") |
| Audio output (rated) | 6 W + 6 W (stereo) |
| Dimensions (without stand) | 800 × 593 × 230 mm (32") |
| Weight (without stand) | 14.4 kg (32") |
| Broadcast system | PAL |
| Digital channel range | E21‑E68 (474‑850 MHz) |
Set "Antenna Power" to "On" in the Initial settings; the TV will then supply DC 5 V to the aerial.
