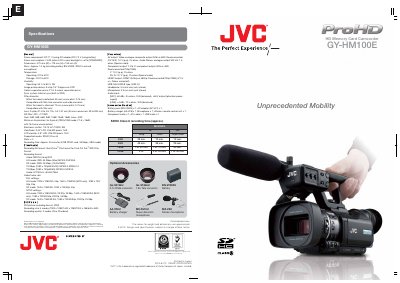

This document introduces optional accessories printed in Japan under the brand JVC, including GY-HD700 and GY-HD100 memory camera recorders, as well as GY-HM100E HD memory card camcorder. The products are characterized by unprecedented mobility, lightweight design, and compact dimensions.
The GY‑HM100E is a lightweight, hand‑held camcorder that records HD video directly to SDHC Class 6 memory cards. It supports native QuickTime MOV files for seamless editing in Final Cut Pro and MP4 files for other NLE systems. The guide covers power requirements, lens specifications, recording formats, and the various output options such as HDMI, component and composite.
Key features include a 10× Fujinon HD lens, rotary optical image stabiliser, twin hot‑swappable SDHC slots, focus‑assist, and a 2.8‑inch LCD monitor. The manual also details audio recording options, wireless remote control, and the ProHD Clip Manager software for transferring footage to a computer. This manual is written in Chinese.
| Power requirement | DC 11 V (AC adapter) / DC 7.2 V (battery) |
|---|---|
| Power consumption | 7.8 W (LCD backlight at STANDARD) |
| Dimensions (W × H × D) | 272 mm × 179 mm × 135 mm |
| Mass (including battery) | ≈ 1.4 kg |
| Operating temperature | 0 °C to 40 °C |
| Lens | Fujinon 10× zoom, F1.8‑2.8, 3.7‑37 mm (39‑390 mm equiv.) |
| Audio recording format | LPCM 2‑ch, 48 kHz, 16‑bit |
It uses standard SDHC Class 6 memory cards, which are inexpensive, lightweight and can be read by any standard card reader.
It records in native QuickTime MOV files for Final Cut Pro and MP4 files for other editing systems.
