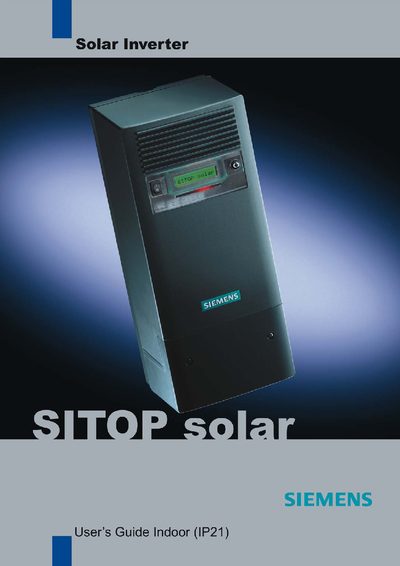

This document is an introduction to SITOP solar photovoltaic inverters, including basic information, physical layout, connection methods, installation, and maintenance.
This user’s guide for the SITOP solar inverter covers all essential information needed to safely install, commission, and operate the device. It includes safety warnings, handling of electrostatically sensitive components, and detailed instructions for connecting masters and slaves, power lines, and sensors.
Key sections include device description, commissioning steps, reaction to abnormal conditions, operator panel functions, block circuit diagrams for various power ratings, technical data, and warranty information. The guide is intended for qualified personnel responsible for installation, maintenance, and troubleshooting.
| Ingress Protection Rating | IP21 |
|---|---|
| Master Power Rating (example configuration) | 1500 W |
| Supported Power Ratings | 1500 W, 2000 W, 2300 W |
The solar generator is connected in the commissioning step 4.3.2, which applies to both MASTER and SLAVE devices.
The inverter has an indoor protection rating of IP21.
