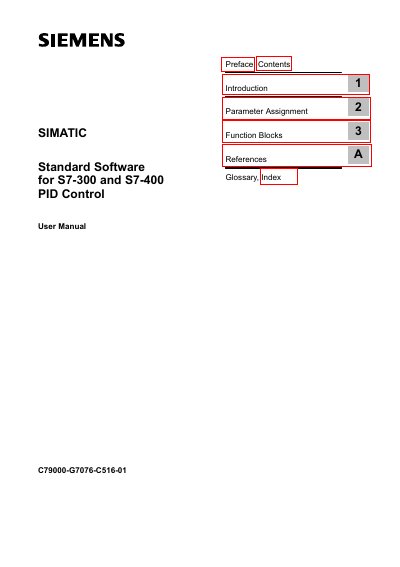

Siemens S7-300/S7-400 PID Control Standard Software User Manual

About this manual

The manual introduces the PID Control software package for SIMATIC S7‑300 and S7‑400 controllers, describing the three function blocks – CONT_C, CONT_S and PULSEGEN – and how they implement continuous, step and pulse‑duration control. It also details the parameter‑assignment user interface, which runs under Windows 95 and provides online help for configuring the blocks.

Safety notices, audience information, and references to related Siemens manuals are included, along with an index and a feedback form for users to rate the documentation. The guide is intended for S7 programmers, control system engineers, operators, and service personnel.

What's inside

• Introduction
• Parameter Assignment
• Function Blocks
• Continuous Control (CONT_C)
• Step Control (CONT_S)
• Pulse Generation (PULSEGEN)
• References
• Index
