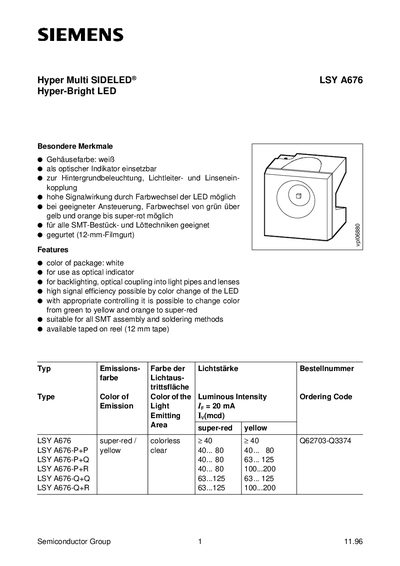

The LSY A676 is a hyper-bright LED with high luminous efficiency and multiple colors available. It is suitable for all SMT assembly and soldering methods.
The LSY A676 Hyper Multi SIDELED is designed for use as an optical indicator, backlighting, and optical coupling into light pipes and lenses. It offers high signal efficiency and can change color from green to yellow, orange, and super‑red when appropriately driven. The device is supplied on a 12 mm taped reel and is compatible with all standard SMT assembly and soldering methods.
Technical data include an operating temperature range of –55 °C to +100 °C, a forward voltage of about 2.0 V at 20 mA, and a viewing angle of 120°. Optical specifications list a peak emission wavelength of 645 nm, a dominant wavelength of 632 nm, and a spectral bandwidth of 16 nm. The package dimensions are approximately 2.4 mm × 2.85 mm. This manual is written in German.
| Operating temperature range | -55 °C to +100 °C |
|---|---|
| Storage temperature range | -55 °C to +100 °C |
| Junction temperature | +100 °C |
| Forward current (IF) | 30 mA |
| Peak emission wavelength (Apeak) | 645 nm |
| Dominant wavelength (Agom) | 632 nm |
| Spectral bandwidth (AX) | 16 nm |
| Package type | Taped on reel (12 mm tape) |
The device operates from –55 °C up to +100 °C.
Yes, it is suitable for use as an optical indicator.
With appropriate control it can change from green to yellow, orange and super‑red.
