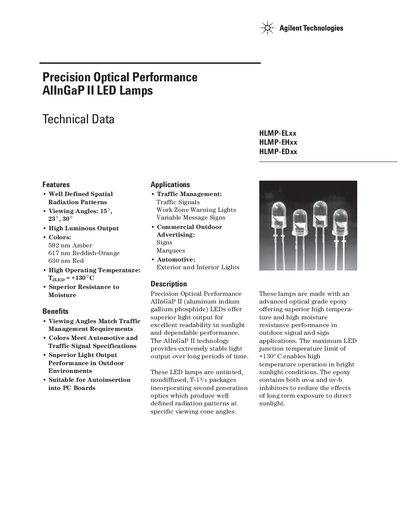

HLMP-ELxx, HLMP-EHxx, HLMP-EDxx Precision Optical Performance AlInGaP II LED Lamps
This datasheet provides the optical performance specifications of Agilent's HLMP‑ELxx, HLMP‑EHxx and HLMP‑EDxx AlInGaP II LED lamps. It lists viewing angles, color wavelengths, luminous output, and high‑temperature resistance for outdoor traffic and automotive applications.
The document also includes mechanical options, package dimensions, electrical/optical characteristics, absolute maximum ratings, and a detailed part‑numbering system to help designers select the correct lamp variant.
| Viewing Angles | 15°, 23°, 30° |
|---|---|
| Available Colors | Amber 592 nm, Red‑Orange 617 nm, Red 630 nm |
| Maximum LED Junction Temperature | +130 °C |
| Forward Voltage (typical) | Amber 2.15 V, Red‑Orange 2.08‑2.41 V, Red 2.00 V |
| Luminous Efficacy | Amber 500 lm/W, Red‑Orange 235 lm/W, Red 155 lm/W |
| Package Diameter | 5.00 ± 0.20 mm |
The lamps are available with viewing angles of 15°, 23°, and 30°.
The series includes Amber (592 nm), Red‑Orange (617 nm) and Red (630 nm) LEDs.
The LED junction can operate up to +130 °C.
Typical forward voltages are 2.15 V for Amber, 2.08‑2.41 V for Red‑Orange, and 2.00 V for Red.
