The TN0201K/TN0201KL is a N-channel 20V (D-S) MOSFET from Vishay Siliconix, which is used for direct logic-level interface, relays, solenoids, lamps, hammers, displays, memories, transistors, etc.

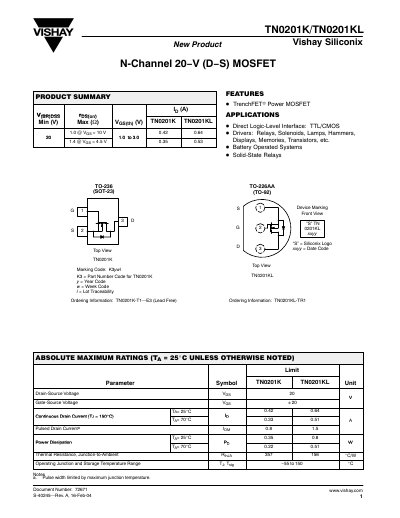

The TN0201K and TN0201KL are 20 V N‑Channel MOSFETs offered by Vishay Siliconix. The document lists absolute maximum ratings, electrical specifications, and typical performance curves for use in battery‑operated systems, solid‑state relays, and driver applications.
Key parameters include a 20 V drain‑source breakdown voltage, typical gate‑threshold voltage of 2 V, on‑resistance as low as 0.47 Ω at VGS = 10 V, and continuous drain current up to 0.64 A (TN0201KL). Thermal resistance, power dissipation limits, and safe operating area graphs are also provided.
| Drain‑Source Voltage (VDS) | 20 V |
|---|
The maximum drain‑source voltage is 20 V.
