This product is a red, blinking LED with vibration resistance, low power consumption and wide viewing angle.

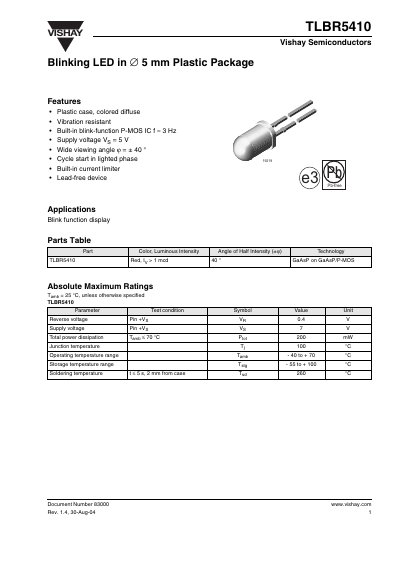

The TLBR5410 is a 5 mm plastic package blinking LED with a built‑in P‑MOS driver that operates at a typical supply voltage of 5 V and a blink frequency of about 3 Hz. It features a wide viewing angle (±40°), lead‑free construction, and a built‑in current limiter.
The document provides absolute maximum ratings, optical and electrical characteristics, package dimensions, and environmental compliance information, including an ozone‑depleting substances policy and legal disclaimer.
| Supply current (I_Son) | 10 mA – 30 mA |
|---|---|
| Blink frequency | 1.3 Hz – 5.2 Hz (typical) |
| Luminous intensity | ≈1.6 mcd (typical) |
| Operating temperature range | -40 °C to +70 °C |
The TLBR5410 operates with a supply voltage between 4.75 V and 7 V, with a typical value of 5 V.
The LED blinks at frequencies from about 1.3 Hz up to 5.2 Hz depending on temperature and supply voltage.
Yes, the device is specified as lead‑free.
The LED provides a wide viewing angle of ±40°.
