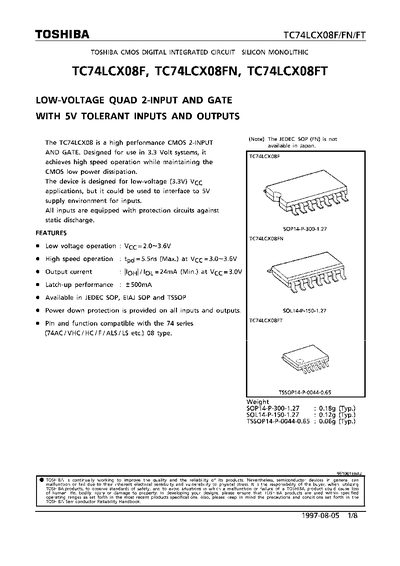

The TC74LCX08F/FN/FT is a CMOS quad 2‑input AND gate designed for low‑voltage operation (VCC 2.0‑3.6 V) and compatible with standard 74‑series logic families. It offers high‑speed switching with a typical propagation delay of 5.5 ns and low power dissipation.
The datasheet provides electrical specifications, maximum ratings, package dimensions, and test circuits for the SOP, SO, and TSSOP versions. It also includes recommended operating conditions, AC and dynamic switching characteristics, and capacitance values for design integration.
