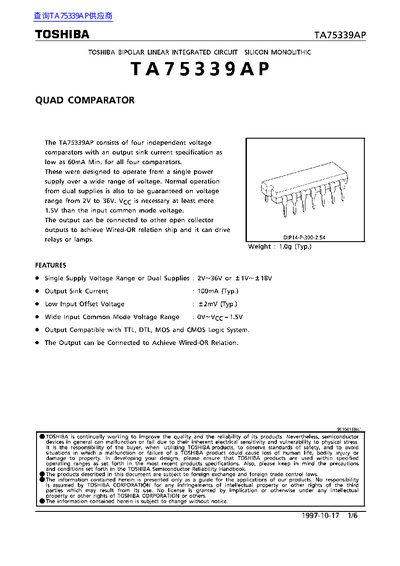

The TA75339AP integrates four independent voltage comparators in a DIP14 package. It operates from a single supply of 2 V to 36 V (or dual supplies) and provides a low‑output‑sink current of up to 100 mA, making it suitable for driving relays or lamps and for wired‑OR configurations. The device features low input offset voltage, wide common‑mode range, and compatibility with TTL, DTL, MOS and CMOS logic families.
The datasheet lists maximum ratings, electrical characteristics, pin connections, and test circuits. Key specifications include a supply voltage range of 18 V‑36 V, typical output sink current of 100 mA, input offset voltage of 2 mV, and operating temperature from –40 °C to 85 °C. Package dimensions and weight are also provided.
| Supply Voltage | 18 V ~ 36 V |
|---|---|
| Output Sink Current | 100 mA (typ.) |
| Input Offset Voltage | 2 mV (typ.) |
| Input Bias Current | 25 nA (typ.) |
| Power Dissipation | 625 mW |
| Operating Temperature | -40 °C ~ 85 °C |
| Package | DIP14‑P‑300‑2.54 |
The TA75339AP can sink up to 100 mA typical output current.
It operates from a single supply of 2 V to 36 V, or dual supplies in the same range.
The typical input offset voltage is 2 mV.
The device is supplied in a DIP14‑P‑300‑2.54 package.
