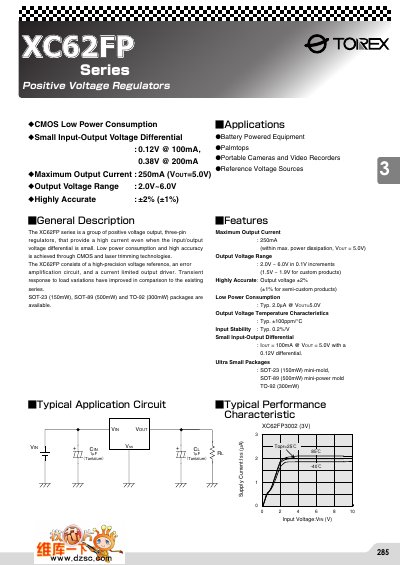

XC62FP series is a group of high precision, high reliability, low power consumption, small input / output voltage differential three pin regulators
The XC62FP series is a family of positive‑voltage output, three‑pin linear regulators offering high current capability with low input‑output differential. Available in ultra‑small SOT‑23, SOT‑89 and TO‑92 packages, they feature low quiescent current and high accuracy achieved through CMOS and laser trimming technologies.
The datasheet details electrical characteristics such as output voltage range (2.0 V ~ 6.0 V), maximum output current (250 mA at 5 V), temperature coefficients (±100 ppm/°C), and recommended application practices, including capacitor sizing to avoid oscillation and input voltage limits.
| Maximum Output Current | 250 mA (VOUT=5.0 V) |
|---|---|
| Output Voltage Range | 2.0 V ~ 6.0 V (0.1 V steps) |
| Output Voltage Accuracy | ±2 % (±1 % semi‑custom) |
| Quiescent Current | Typical 2.0 µA @ VOUT=5.0 V |
| Temperature Coefficient | ±100 ppm/°C |
| Input‑Output Differential (100 mA load) | 0.12 V |
| Recommended Input Voltage Range | 6.0 V ≤ VIN ≤ 10.0 V |
The maximum output current is 250 mA when VOUT is set to 5.0 V.
The device should be operated with an input voltage between 6.0 V and 10.0 V.
If the source impedance is 10 Ω or higher, use a capacitor of at least 1 µF on the input (C_IN).
Typical quiescent current is 2.0 µA when the output voltage is 5.0 V.
