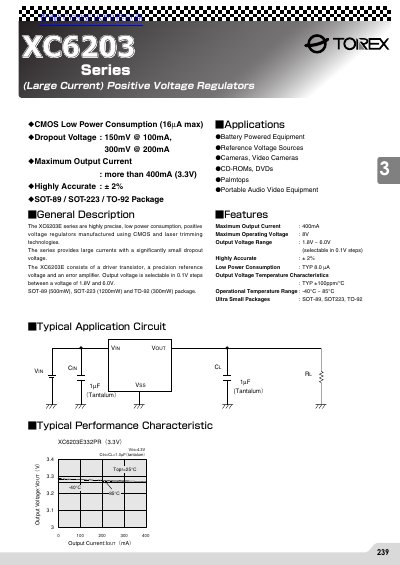

The XC6203E series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6203E consists of a driver transistor, a precision reference voltage and an error amplifier. Output voltage is selectable in 0.1V steps between a voltage of 1.8V and 6.0V. Available packages include SOT-89 (500mW), SOT-223 (1200mW) and TO-92 (300mW).
The XC6203E series are highly precise, low‑power positive voltage regulators manufactured with CMOS and laser‑trimming technology. They are available in ultra‑small SOT‑89, SOT‑223 and TO‑92 packages and are suited for battery‑powered equipment, reference voltage sources, cameras, portable audio‑video devices and other applications.
Key specifications include a maximum output current of 400 mA, selectable output voltage from 1.8 V to 6.0 V in 0.1 V steps, dropout voltage as low as 150 mV at 100 mA, accuracy of ±2 %, typical quiescent current of 8 mA, and an operating temperature range of –40 °C to 85 °C. This manual is written in Chinese.
