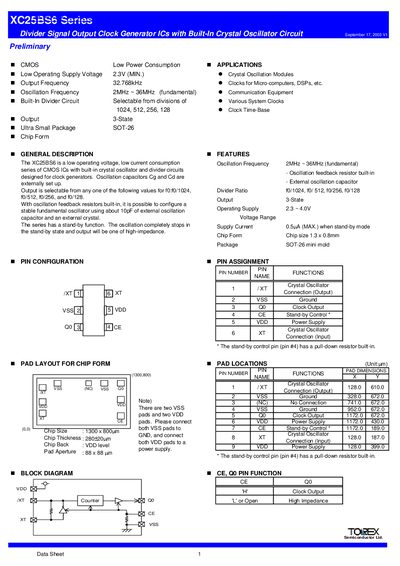

XC25BS6 series are clock generators with built-in crystal oscillator circuit
The XC25BS6 series are low‑operating‑voltage CMOS clock generator ICs with a built‑in crystal oscillator and selectable divider ratios. They are intended for use in micro‑computer, DSP, and communication equipment clock applications.
Key features include a wide oscillation frequency range (2 MHz ~ 36 MHz), 3‑state output, standby mode that disables oscillation, and a compact SOT‑26 package. The datasheet details absolute maximum ratings, electrical characteristics, pin configuration, and typical application circuits.
| Operating Supply Voltage | 2.3 V ~ 4.0 V |
|---|---|
| Divider Ratio | 0/1024, f0/512, 0/256, 0/128 |
| Stand‑by Supply Current | 0.5 µA (max) |
| Package | SOT‑26 mini mold |
| Chip Size | 1.3 mm × 0.8 mm |
In standby mode the oscillation stops completely and the output becomes high‑impedance.
