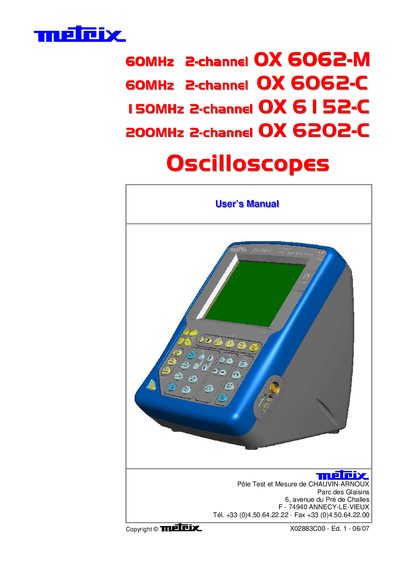

Chauvin Arnoux OX 6062-M/6062-C/6152-C/6202-C Oscilloscope User Manual
This manual provides detailed instructions for the Chauvin Arnoux OX 6062‑M, OX 6062‑C, OX 6152‑C and OX 6202‑C 2‑channel oscilloscopes. It includes safety precautions, hardware description, menu navigation, measurement functions, and maintenance guidelines.
The document also describes the multimeter mode, Ethernet and RS‑232 communication options, and technical specifications such as bandwidth, sample rate, power requirements and measurement categories. This manual is written in French.
Metrix OX 6062 specifications
| OX 6062-M bandwidth | 60 MHz |
|---|---|
| OX 6062-C bandwidth | 60 MHz |
| OX 6152-C bandwidth | 150 MHz |
| OX 6202-C bandwidth | 200 MHz |
| Sample rate (all models) | 1 GHz |
| Power supply voltage | 90 V – 264 V AC (50‑60 Hz) |
| Measurement category | CAT II (also CAT I) |
| Acquisition depth | 2500 counts |
Source: Chauvin Arnoux OX 6062-M/6062-C/6152-C/6202-C Oscilloscope User Manual
All Metrix OX 6062 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power supply voltage range is required for the OX series oscilloscopes?
They operate on a mains voltage of 90 V to 264 V AC (50‑60 Hz).
From: Chauvin Arnoux OX 6062-M/6062-C/6152-C/6202-C Oscilloscope User Manual
Which measurement categories are supported by the OX oscilloscopes?
The instruments comply with safety standard NF EN 61010‑1 and support CAT I and CAT II measurement categories; CAT II is for direct mains connections.
From: Chauvin Arnoux OX 6062-M/6062-C/6152-C/6202-C Oscilloscope User Manual
What is the sampling speed of the OX 6000 series?
It can sample at 1 Gs/s in single‑shot mode and 50 Gs/s in repetitive mode.
From: Metrix OX 6062, OX 6152, OX 6202 Oscilloscope Handbook
How many direct‑access keys does the instrument have?
The front panel provides 28 direct‑access controls and shortcuts.
From: Metrix OX 6062, OX 6152, OX 6202 Oscilloscope Handbook
