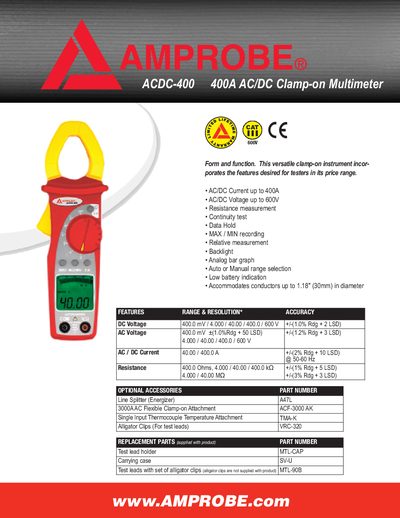

The ACDC-400 400A AC/DC Clamp-on Multimeter is a versatile instrument that incorporates the features desired for testers in its price range.
The ACDC-400 is a versatile clamp‑on multimeter that measures AC/DC current up to 400 A and voltage up to 600 V. It offers resistance, continuity, data‑hold, MAX/MIN recording, relative measurement, backlight, an analog bar graph, and automatic or manual range selection. The instrument can accommodate conductors up to 30 mm (1.18") in diameter.
The package includes the instrument, test leads, a rubber test‑lead holster, a user manual, a carrying case, and batteries. Safety compliance follows EN 61010, Class 2 double‑reinforced insulation, and CAT III 600 V over‑voltage rating. The device operates from two 1.5 V AAA batteries with an estimated 25‑hour battery life.
| Maximum AC/DC Current | 400 A |
|---|---|
| Maximum AC/DC Voltage | 600 V |
| Maximum Conductor Size | 30 mm (1.18") |
| Physical Size (L×W×H) | 205 mm × 64 mm × 39 mm |
| Weight (including battery) | ≈280 g |
| Battery Type | 2 × 1.5 V LR03 AAA |
| Display | 3‑digit LCD with backlight |
| Sample Rate | 2 samples/sec (analog bar graph 20 samples/sec) |
| Operating Temperature Range | ‑10 °C to +40 °C |
| Over‑voltage Rating | CAT III 600 V |
It can measure AC or DC current up to 400 A.
The clamp can accommodate conductors up to 30 mm (1.18 inches) in diameter.
The battery life is about 25 hours.
