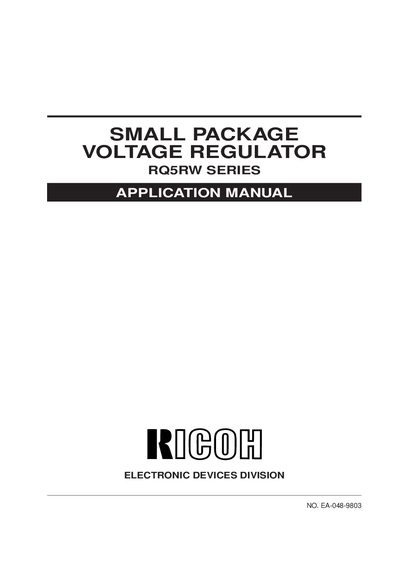

This application manual describes the features and characteristics of the Ricoh RQ5RW series small package voltage regulators and application circuits
This application manual describes the RQ5RW series voltage regulator ICs, including their features, block diagram, pin configuration, and electrical characteristics. It is intended for designers of office equipment, consumer electronics, and other standard applications.
The document contains absolute maximum ratings, typical performance data, selection guides, and packaging specifications, helping engineers select the appropriate part number and integrate the device safely into their designs.
| Supply Current (Standby) Typical | 0.1 pA |
|---|---|
| Maximum Output Current | 150 mA |
| Dropout Voltage Typical | 40 mV |
| Operating Temperature Range | -40 °C to +85 °C |
The device can deliver up to 150 mA of output current.
Typical standby (standby) current is 0.1 pA.
The IC operates from –40 °C to +85 °C.
